Details

Description

Stunning and Rebelious

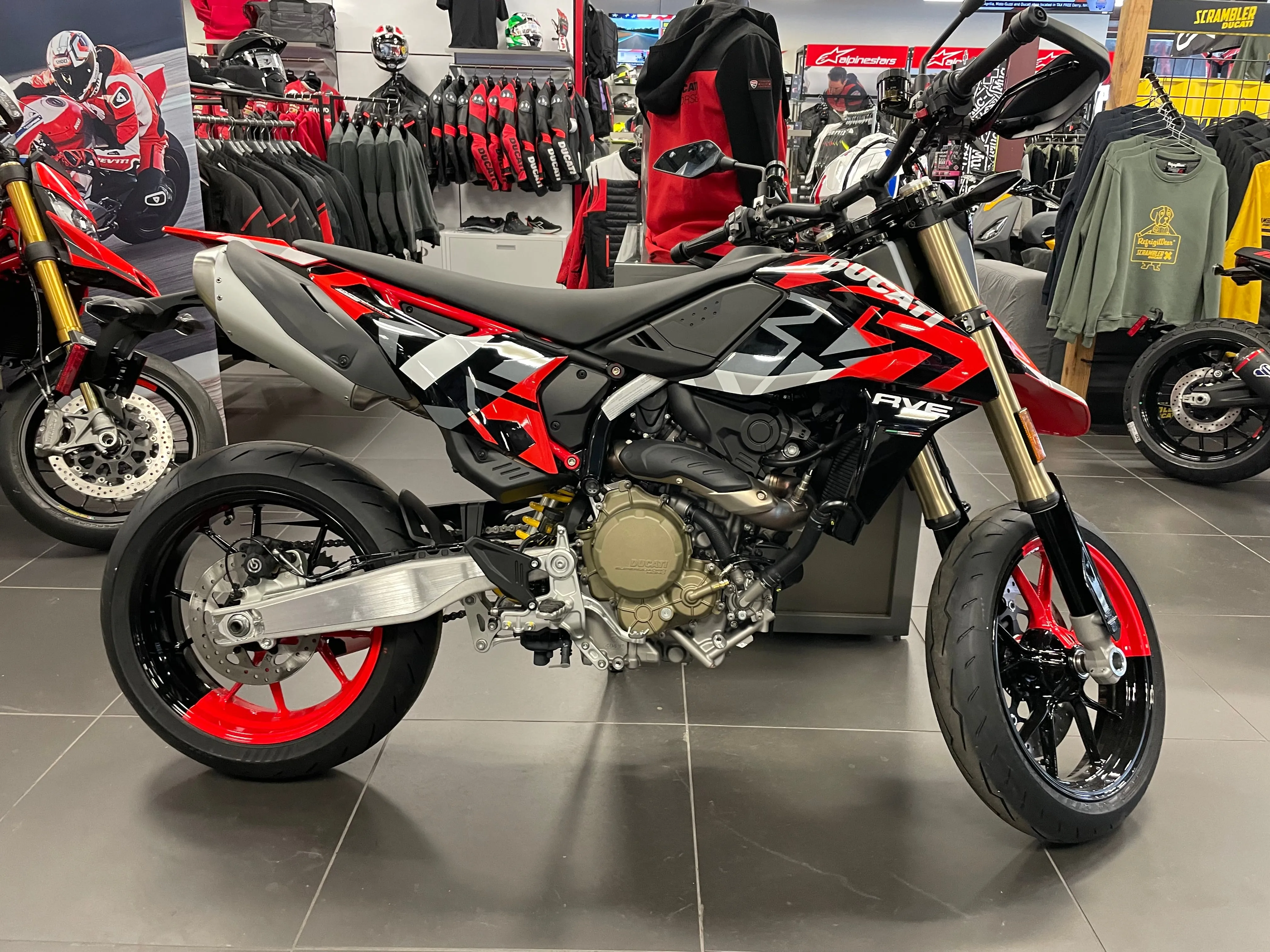

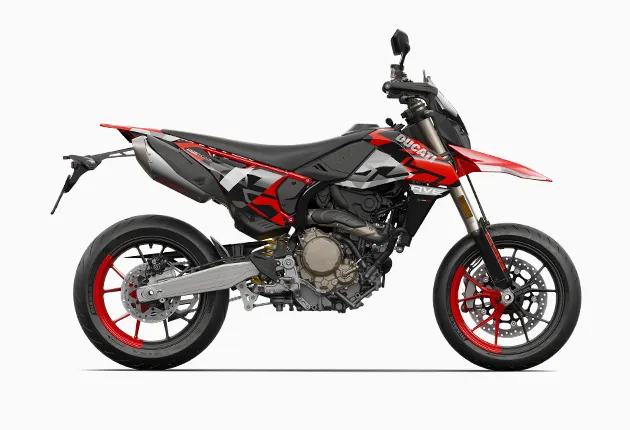

The look of the new Hypermotard 698 Mono retraces the distinctive traits of a race-ready supermotard. Clean lines, compact forms, and aggressive style. The bold yet refined look is traced by the high seat, the simple, straight double-sided swingarm, and the slender tail section. The fender is high and expansive, while the rear fairings wrap around the exhaust, leaving room for the number plate holder.

A Sharp Gaze

The extremely compact LED headlamp has a DRL* daytime running light with a "double C" design that dominates the front view and gives the model a technological and instantly recognizable appearance. The same "double C" profile characterizes the taillight integrated under the tail, while the stop light features the Ducati Brake Light function to increase safety in urban traffic.

The RVE Side of Fun

The RVE version flaunts the Graffiti livery and adds a quick shifter, accentuating the street character of the Hypermotard 698 Mono and ensuring that the motorcycle will always be noticed. Even with the engine off.

Specifications

ENGINE	Superquadro Mono, single-cylinder, 4 valves per cylinder, Desmodromic timing, 2-balance countershafts, liquid cooled
Displacement	659cc
Bore x Stroke	116 x 62.4mm
Compression Ratio	13.1:1
Power (Claimed)	77.5 hp (57 kW) at 9750 rpm
Torque (Claimed)	46.5 lb-ft (63 Nm) at 8000 rpm
Fuel Injection	EFI, Øe 62mm throttle body with full Ride by Wire system
Exhaust	1-2 exhaust system, double aluminum mufflers, catalytic converter and lambda probe
Gearbox	6 speed, with Quickshifter (DQS)
Clutch	Slipper and self-servo wet multiplate clutch, hydraulic control
Frame	Tubular steel Trellis frame
Front Suspension	Ø 45mm Marzocchi fully adjustable aluminum fork
Front Wheel	Y shaped 5-spoke light alloy 3.5″ x 17″
Front Tire	Pirelli Diablo Rosso IV, 120/70 ZR17
Rear Suspension	Progressive linkage with Sachs fully adjustable monoshock. Aluminum double-sided swingarm
Rear Wheel	Y-shaped 5-spoke light alloy 5.0″ x 17″
Rear Tire	Pirelli Diablo Rosso IV, 160/60 ZR17
Front Wheel Travel	8.5 in.
Rear Wheel Travel	9.4 in.
Front Brake	Ø 330mm aluminum flange disc, Brembo M4.32 caliper, radial pump with adjustable lever, with Bosch Cornering ABS
Rear Brake	Ø 245mm disc, single piston floating caliper, with Bosch Cornering ABS
Seat Height	35.6 in.
Wheelbase	56.8 in.
Rake/Trail	26.1°/4.2 in
Fuel Tank Capacity	3 U.S. gallons
Wet Weight	333 lb
Instrumentation	3.8″ LCD display with Improved Black Nematic (IBN) technology
Safety Equipment	Riding Modes, Bosch Cornering ABS, Ducati Traction Control (DTC), Ducati Wheelie Control (DWC), Engine Brake Control (EBC), Ducati Brake Light (DBL)*
Standard Equipment	Power Modes, Ducati Power Launch (DLC), Full LED lighting system, Daytime Running Lights (DRL), Ducati Quick Shifter (DQS), Tapered aluminum handlebars, Lithium-ion battery
